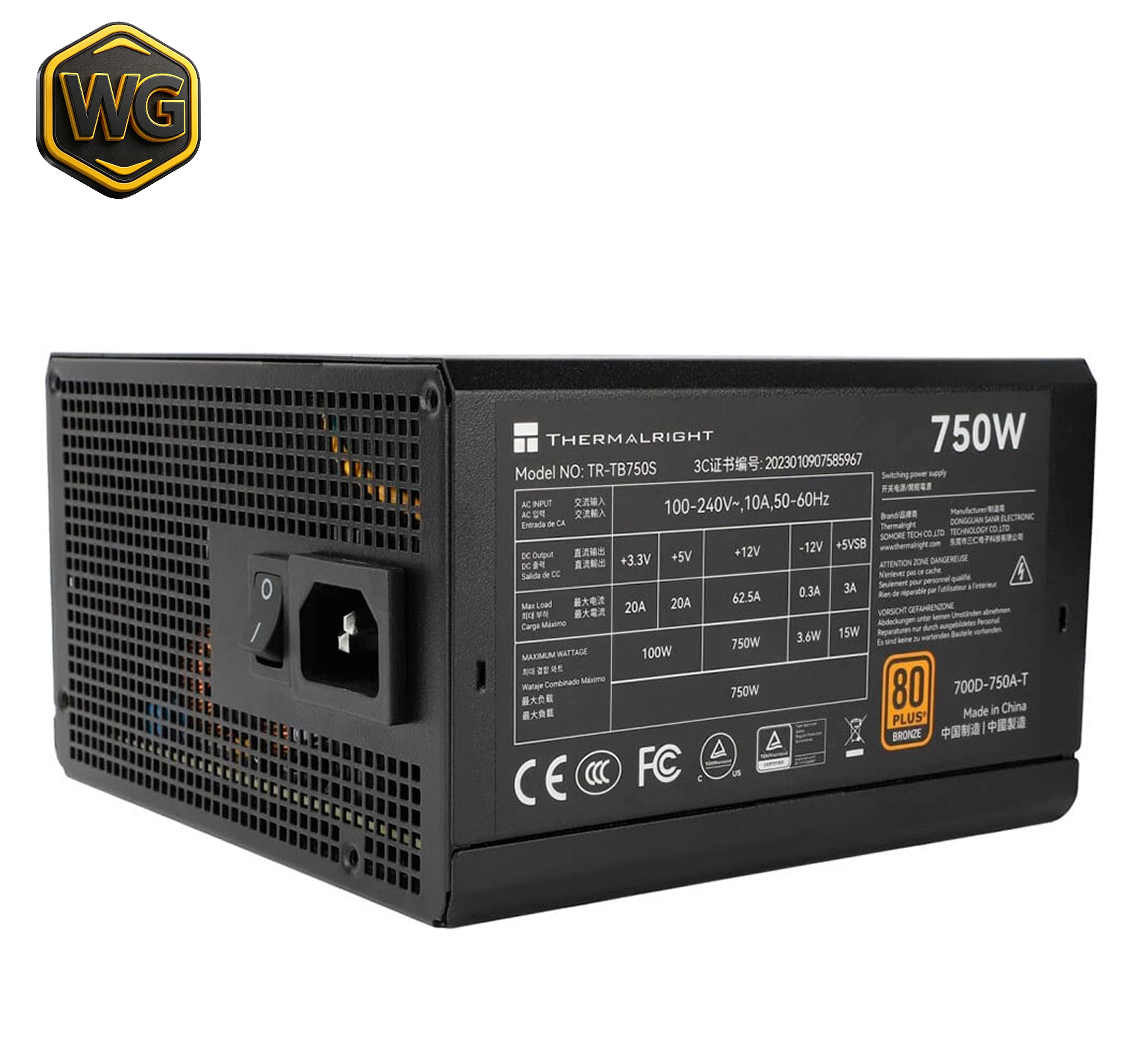

The Thermalright TB-750S is a 750W ATX power supply designed for modern desktop and gaming PC systems. It provides 750W total rated power with an 80 PLUS Bronze efficiency rating, while its fixed-cable design provides a straightforward connection setup. The PSU uses a 120mm cooling fan, supports a 100-240V AC input range, and is designed to operate between 0°C and 40°C. Thermalright specifies an MTBF of more than 100,000 hours and dimensions of 150 × 140 × 86 mm ±1 mm.
The TB-750S is also identified by retailers as an ATX 3.0 / PCIe 5.0-ready PSU, with a native 12VHPWR connection for compatible modern graphics cards. Available specification listings identify a single +12V rail rated at 62.5A, with up to 750W available on +12V, plus 20A +3.3V and 20A +5V rails. Its fixed cable configuration includes motherboard, CPU, PCIe, SATA and Molex power connections.
750W Rated Power Output — Provides 750 watts of total power for desktop and gaming PC configurations.
80 PLUS Bronze Efficiency — Certified Bronze efficiency for more efficient power conversion.
ATX 3.0 Platform — Designed around the ATX 3.0 power standard.
PCIe 5.0 / 12VHPWR Support — Includes a 16-pin 12VHPWR connector for compatible modern GPUs.
Non-Modular Fixed Cabling — Cables are permanently attached to the power supply.
120mm Cooling Fan — Provides active airflow for PSU cooling.
Wide-Range AC Input — Supports 100-240V AC input.
10A Maximum Input Current — Rated input current is 10A.
50-60Hz Input Frequency — Compatible with standard AC mains frequencies.
Strong +12V Output — The +12V rail is specified at 62.5A with up to 750W combined +12V power.
Standard ATX Dimensions — Measures 150 × 140 × 86 mm ±1 mm.
0-40°C Operating Range — Designed for operation within the manufacturer's specified temperature range.
Long MTBF Rating — Thermalright specifies MTBF above 100,000 hours.
Active PFC — Specification listings identify active Power Factor Correction.
Multiple Power Connectors — Supports motherboard, CPU/EPS, PCIe, SATA and Molex connections.
Specification | Details |
|---|---|
Brand | Thermalright |
Model | TB-750S / TR-TB750S |
Product Type | Power Supply Unit (PSU) |
Rated Power | 750W |
Efficiency Certification | 80 PLUS Bronze |
Form Factor | ATX |
Power Standard | ATX 3.0 |
Modular Design | Non-Modular / Fixed Cable |
PCIe Standard | PCIe 5.0 |
12VHPWR | 1 × 16-pin (12+4-pin) |

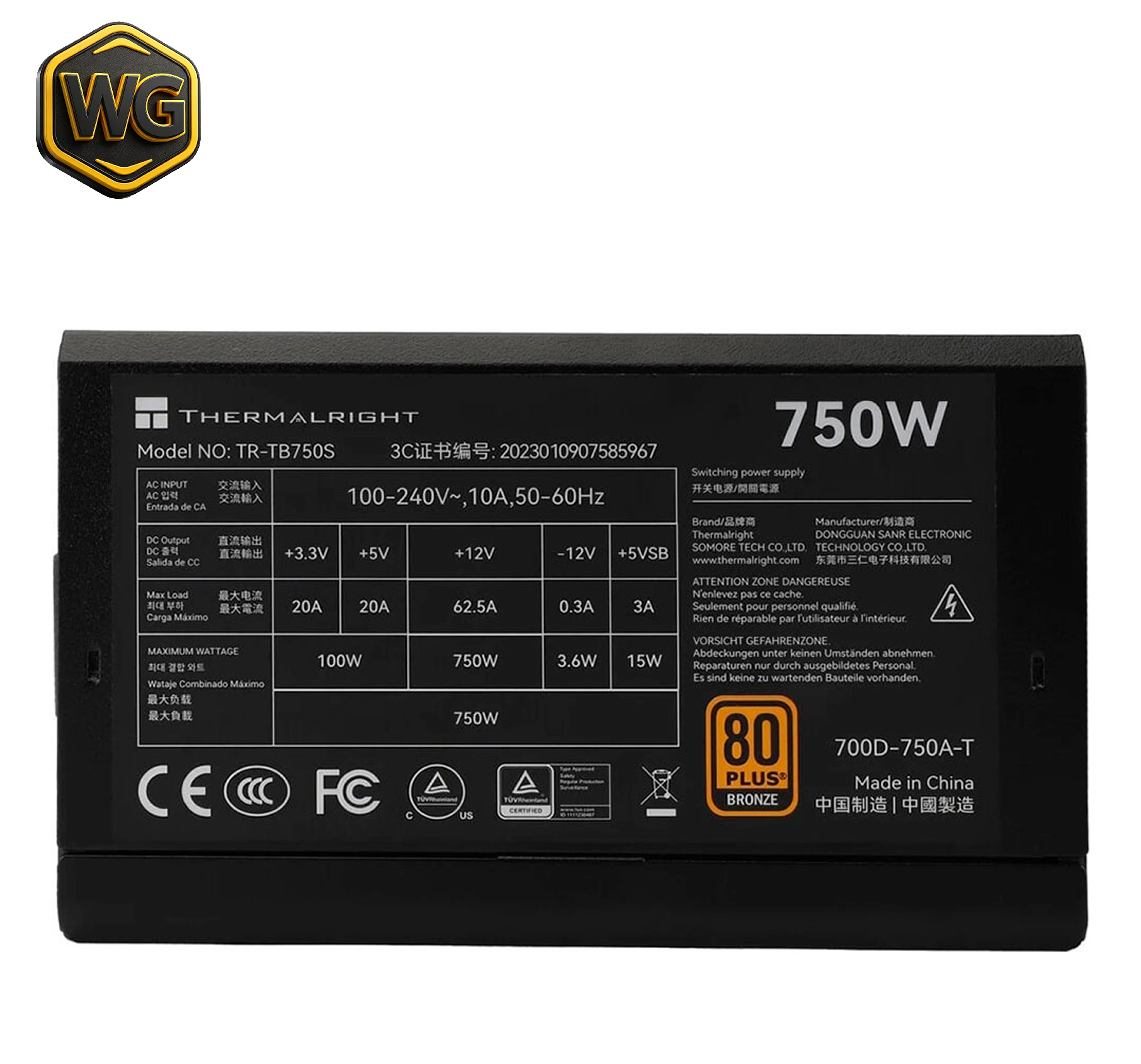

+3.3V Rail | 20A |
+5V Rail | 20A |
+12V Rail | 62.5A |
+12V Combined Power | 750W |
-12V Rail | 0.3A |
+5VSB Rail | 3A |
+3.3V + +5V Combined Power | 100W |
-12V Power | 3.6W |
+5VSB Power | 15W |
Input Voltage | 100-240V AC |
Input Current | 10A |
Input Frequency | 50-60Hz |
Cooling Fan | 120mm |
Operating Temperature | 0-40°C |
MTBF | >100,000 Hours |
Dimensions | 150 × 140 × 86 mm ±1 mm |
Color | Black |
Motherboard Connector | 1 × 20+4-pin ATX |
CPU/EPS Connectors | 2 × CPU/EPS connectors |
PCIe Connectors | 2 × 6+2-pin PCIe + 1 × 12VHPWR |
SATA Connectors | 5 × SATA |
Molex Connectors | 3 × Molex |
PFC | Active PFC |
Warranty | 2 Years — Dead/Burn Issues Only |
