GIGABYTE B760M (Black) DDR4 Micro-ATX Motherboard price in Pakistan product image
GIGABYTE

GIGABYTE B760M (Black) DDR4 Micro-ATX Motherboard

Rs 41,000

Currency: PKR

0.0
Availability:
10 in stock
100% Branded Original Products

(89!ZA1OP)

Color: Select
1
map We Deliver All Over Pakistan

We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:

leopard courier Leopards Courier

We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:

  • Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
  • Non-COD Parcel Delivery to Other Cities – Over Night: 2 to 4 days
  • Non-COD Parcel Delivery to Other Cities – Detain: 3 to 4 days

Expedited delivery within 48 hours. Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.

At WaddaGamer, we prioritize the safety and security of your packages to ensure a smooth delivery experience.

  • To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
  • Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
  • Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
  • Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
  • Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.

You can exchange any product purchased from WaddaGamer within 14 days of purchase under the following conditions:

  • The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
  • The item(s) does not match the original specifications or is different from what you ordered.

To raise a dispute, please notify us within 3–4 days of delivery by contacting our support team via email at support@waddagamer.com or by calling 0300-0680143. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.

For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to support@waddagamer.com within 14 days of purchase to initiate the replacement process.

Returns:

If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.

Refund Policy:

If an order is canceled for any reason, the refund will be processed within 3 to 4 days. In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, WaddaGamer offers a refund policy. If the payment was made through a merchant, the refund will be processed through the same merchant channel.

Please note that if the payment was made via credit or debit card, any applicable refund may take 7 to 10 additional working days to reflect in your account, as per Pakistan's payment security standards.

To initiate a refund, please contact our support team at support@waddagamer.com or WhatsApp: 0300-0680143 within the specified time frame.

Product Description

GIGABYTE B760M (Black) GAMING PLUS WIFI DDR4 LGA 1700 Intel B760 Micro-ATX Motherboard - Price in Pakistan

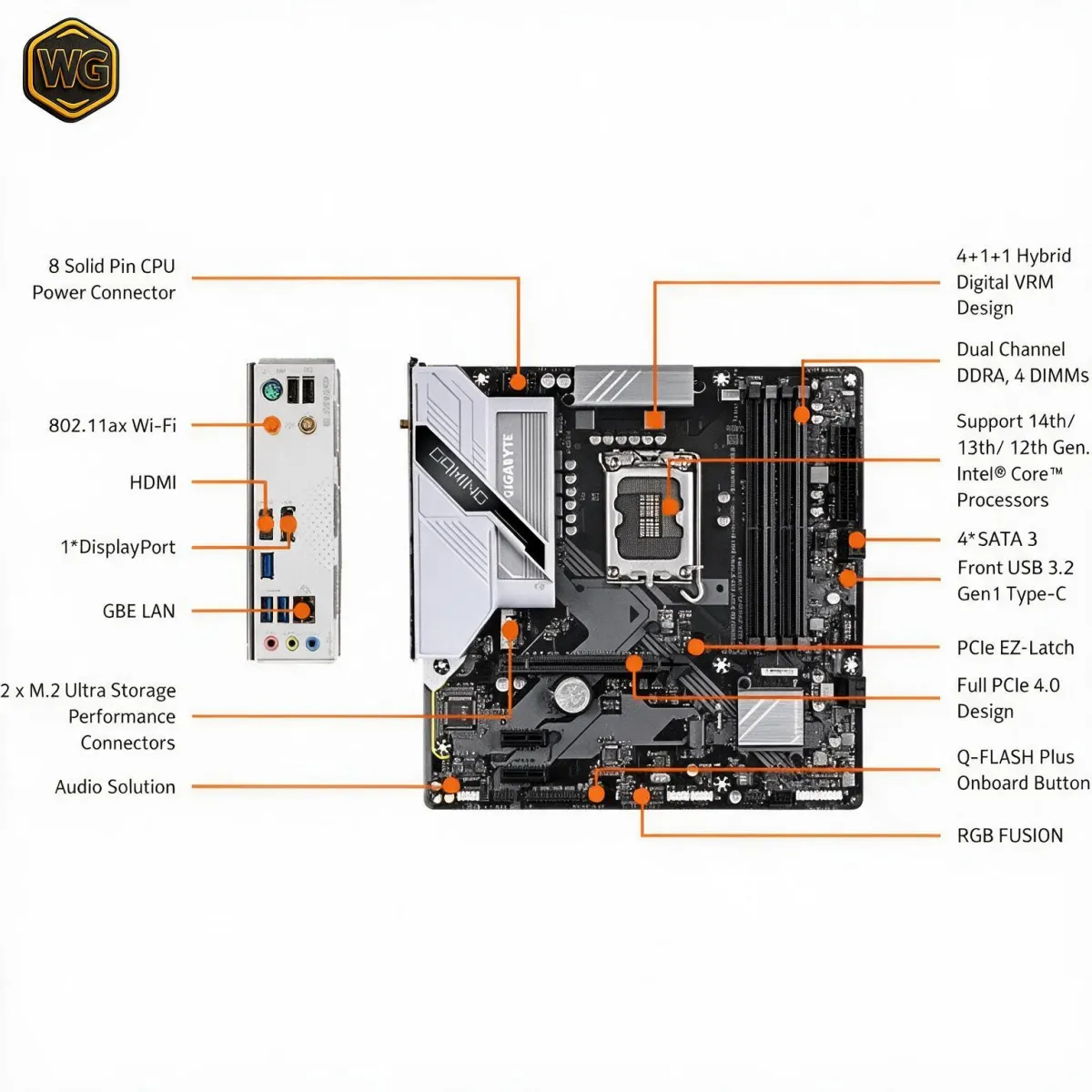

The GIGABYTE B760M GAMING PLUS WIFI DDR4 is a Micro ATX gaming motherboard built around the Intel B760 chipset and LGA 1700 socket, supporting compatible Intel Celeron, Pentium Gold, and 13th/14th Gen Intel Core processors. It provides a practical foundation for gaming PCs, home workstations, and performance-focused systems while retaining the compact footprint of a Micro ATX motherboard.

The board features four DDR4 DIMM slots supporting up to 128GB of system memory in a dual-channel configuration. It supports DDR4 memory speeds from 2133 MT/s up to DDR4-5333 through overclocking, along with compatible XMP memory modules. ECC Un-buffered and non-ECC Un-buffered DIMMs are supported in non-ECC mode.

For graphics and expansion, the motherboard includes one PCIe 4.0 x16 slot running at x16 and two PCIe 3.0 x1 slots. Storage options include two M.2 PCIe 4.0 x4/x2 connectors for high-speed NVMe SSDs and four SATA 6Gb/s ports, with support for SATA RAID 0, 1, 5, and 10.

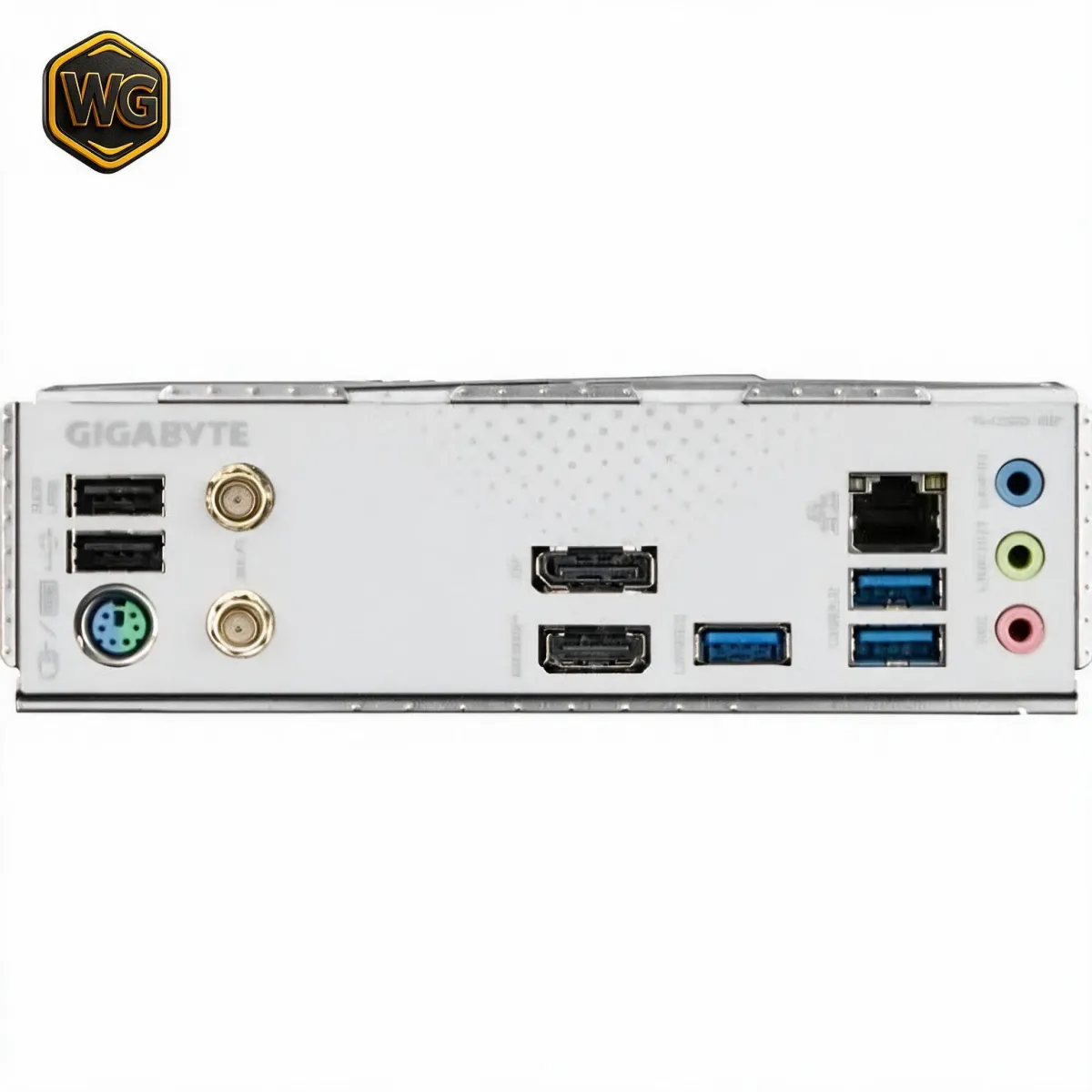

Connectivity is another major strength, with integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.3, alongside a 1Gbps LAN connection. The rear I/O provides HDMI, DisplayPort, USB ports, PS/2, network connectivity, audio jacks, and antenna connectors.

The B760M GAMING PLUS WIFI DDR4 also includes 7.1-channel onboard audio, RGB and addressable LED headers, multiple fan headers, USB Type-C internal connectivity, and Q-Flash Plus, making BIOS updates and system customization more convenient.


Features

  • Intel B760 chipset platform

  • LGA 1700 CPU socket

  • Supports Intel 13th Gen and 14th Gen Core processors

  • Supports Intel Celeron and Pentium Gold processors

  • 4 × DDR4 DIMM slots

  • Up to 128GB system memory

  • Dual-channel memory architecture

  • DDR4 support up to 5333 MT/s via overclocking

  • Intel XMP memory support

  • Supports ECC Un-buffered DIMMs in non-ECC mode

  • 1 × PCIe 4.0 x16 expansion slot

  • 2 × PCIe 3.0 x1 expansion slots

  • 2 × M.2 PCIe 4.0 SSD connectors

  • 4 × SATA 6Gb/s storage connectors

  • SATA RAID 0 / 1 / 5 / 10 support

  • Integrated Wi-Fi 6 (802.11ax)

  • Bluetooth 5.3

  • 1Gbps LAN

  • 7.1-channel onboard audio

  • HDMI and DisplayPort outputs

  • USB Type-C internal header

  • Multiple USB 3.2 Gen 1 and USB 2.0/1.1 headers

  • CPU and system fan headers

  • Addressable RGB and RGB LED headers

  • Q-Flash Plus BIOS update support

  • GIGABYTE Control Center (GCC) support

  • Hardware voltage and temperature monitoring

  • Fan-speed and water-cooling flow monitoring

  • Fan-failure warning

  • Fan-speed control

  • Windows 11 support

  • Micro ATX form factor

  • 100 × 100 mm? VESA is not applicable to motherboards; this specification was not provided for the motherboard and should not be listed as a motherboard feature.


Specifications

Specification

Details

Brand

GIGABYTE

Model

B760M GAMING PLUS WIFI DDR4

Motherboard Type

Gaming Motherboard

Form Factor

Micro ATX

Dimensions

9.6 × 9.6 inches

Chipset

Intel B760

CPU Socket

LGA 1700

Supported CPUs

Intel Celeron / Pentium Gold / Intel Core 13th Gen / Intel Core 14th Gen

Memory Type

DDR4

Memory Slots

4 × 288-pin DIMM

Maximum Memory

128GB

Maximum Capacity per DIMM

32GB

Memory Architecture

Dual Channel

Standard Memory Speed

DDR4-3200

Overclocked Memory Support

Up to DDR4-5333 (O.C.)

XMP Support

Yes

ECC Memory

ECC Un-buffered DIMM supported in non-ECC mode

PCIe x16

1 × PCIe 4.0 x16

PCIe x1

2 × PCIe 3.0 x1

M.2 Slots

2 × M.2, PCIe 4.0 x4/x2, Socket 3, M Key, 2280

SATA Ports

4 × SATA 6Gb/s

SATA RAID

RAID 0 / 1 / 5 / 10

LAN

1Gbps RJ-45

Wireless

Wi-Fi 6 (802.11ax)

Bluetooth

Bluetooth 5.3

Audio

7.1-Channel

Rear USB 2.0/1.1

2

Rear USB 3.2 Gen 1

3

HDMI

1

DisplayPort

1

PS/2

1 × Keyboard/Mouse

Network Port

1 × RJ-45

Audio Jacks

3

Wi-Fi Antenna

2 × SMA Antenna Connectors

Internal USB Type-C

1 × USB 3.2 Gen 1 Header

Internal USB 3.2 Gen 1

1 × Header

Internal USB 2.0/1.1

2 × Headers

CPU Fan Header

1

System Fan Headers

3

Addressable LED Header

1

RGB LED Header

1

Front Panel Header

1

Front Panel Audio

1

TPM Header

1

Serial Port Header

1

Parallel Port Header

1

S/PDIF Out Header

1

Q-Flash Plus

Yes

Reset Jumper

1

Clear CMOS Jumper

1

Main Power Connector

1 × 24-pin ATX

CPU Power Connector

1 × 8-pin ATX 12V

Windows Support

Windows 11

Software

GIGABYTE Control Center (GCC)

BIOS Features

Q-Flash / Q-Flash Plus

Form Factor

Micro ATX
