GIGABYTE
Gigabyte A520M (Black) DS3H AMD AM4 Micro-ATX Motherboard
Rs 28,990
Currency: PKR
0.0
Availability:
10 in stock
100% Branded Original Products
(89!ZA1OP)
Variant: Black
1
SKU: A520M
We Deliver All Over Pakistan
We offer delivery services across Pakistan for your convenience. Here are the details of our shipping options:
Leopards Courier
We also partner with Leopards Courier for deliveries throughout Pakistan. Here are the estimated delivery times for different scenarios:
- Cash on Delivery (COD) Parcel Delivery to Other Cities: 2 to 4 days (COD parcels are not insured)
- Non-COD Parcel Delivery to Other Cities – Over Night: 2 to 4 days
- Non-COD Parcel Delivery to Other Cities – Detain: 3 to 4 days
Expedited delivery within 48 hours. Please note that the delivery times mentioned above are approximate and may vary depending on the location and other factors. We strive to ensure safe and secure shipping for all orders.
At WaddaGamer, we prioritize the safety and security of your packages to ensure a smooth delivery experience.
- To claim a warranty issue, fill out the Return/Warranty Claim Form available on our website.
- Defective or faulty products under warranty are sent to the distributor/vendor for repair, refund, or replacement based on their warranty policies.
- Warranty claims will be rejected if the product has been physically damaged, incorrectly installed, or subjected to abuse.
- Replacing faulty equipment is done after the official service agent confirms the warranty issue. The warranty process usually takes up to 20 working days to complete.
- Warranty eligibility is applicable only to products with warranty information mentioned on the product page. Products without warranty information are not covered.
You can exchange any product purchased from WaddaGamer within 14 days of purchase under the following conditions:
- The item(s) is faulty, damaged, or defective at the time of delivery (applicable for non-COD orders).
- The item(s) does not match the original specifications or is different from what you ordered.
To raise a dispute, please notify us within 3–4 days of delivery by contacting our support team via email at support@waddagamer.com or by calling 0300-0680143. Each dispute will be evaluated on a case-by-case basis, and we strive to find a fair resolution for both parties.
For damaged items, it is essential to provide an unboxing video as evidence. Please email the video to support@waddagamer.com within 14 days of purchase to initiate the replacement process.
Returns:
If a product received does not match the description on our website, you have 7 working days from the date of delivery to claim an exchange or cancel the order. To initiate a return, the product(s) must be undamaged, unopened, and returned with all packaging materials and documentation.
Refund Policy:
If an order is canceled for any reason, the refund will be processed within 3 to 4 days. In the event that you are not satisfied with your purchase or there are certain circumstances where a refund is applicable, WaddaGamer offers a refund policy. If the payment was made through a merchant, the refund will be processed through the same merchant channel.
Please note that if the payment was made via credit or debit card, any applicable refund may take 7 to 10 additional working days to reflect in your account, as per Pakistan's payment security standards.
To initiate a refund, please contact our support team at support@waddagamer.com or WhatsApp: 0300-0680143 within the specified time frame.
Product Description

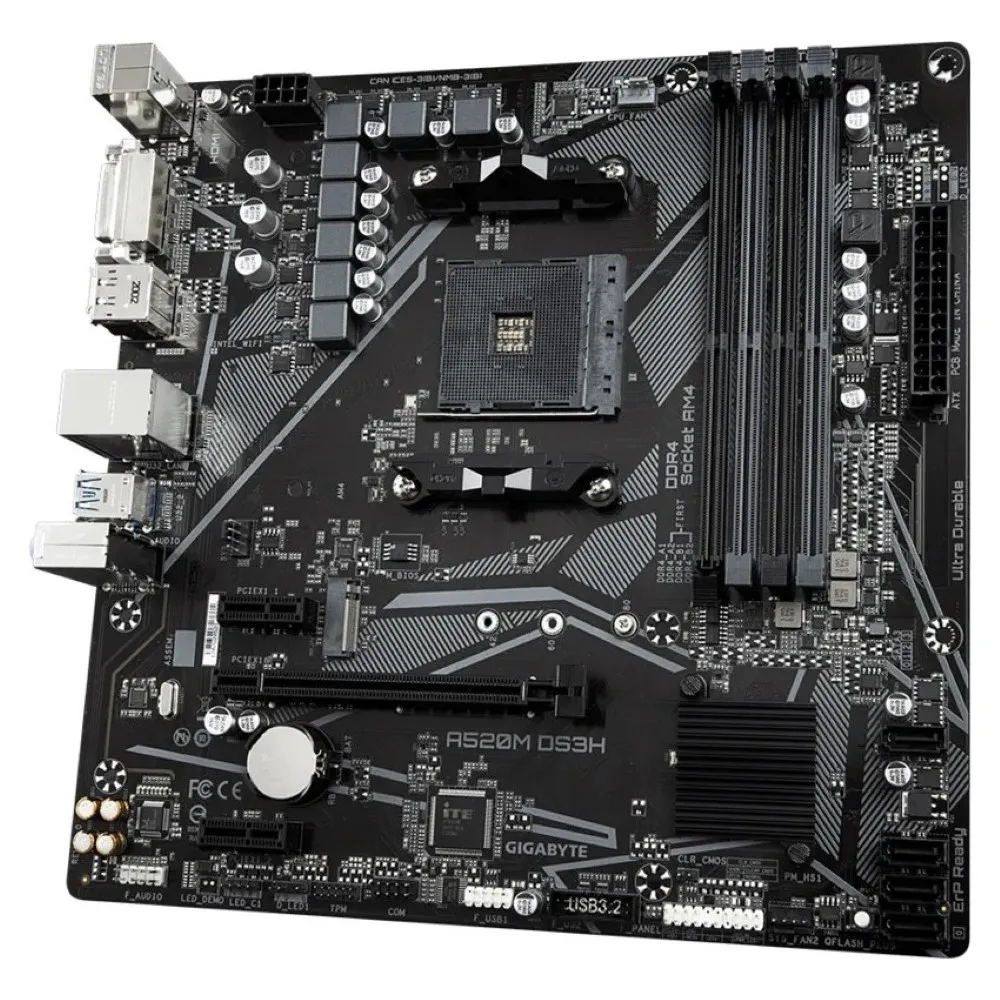

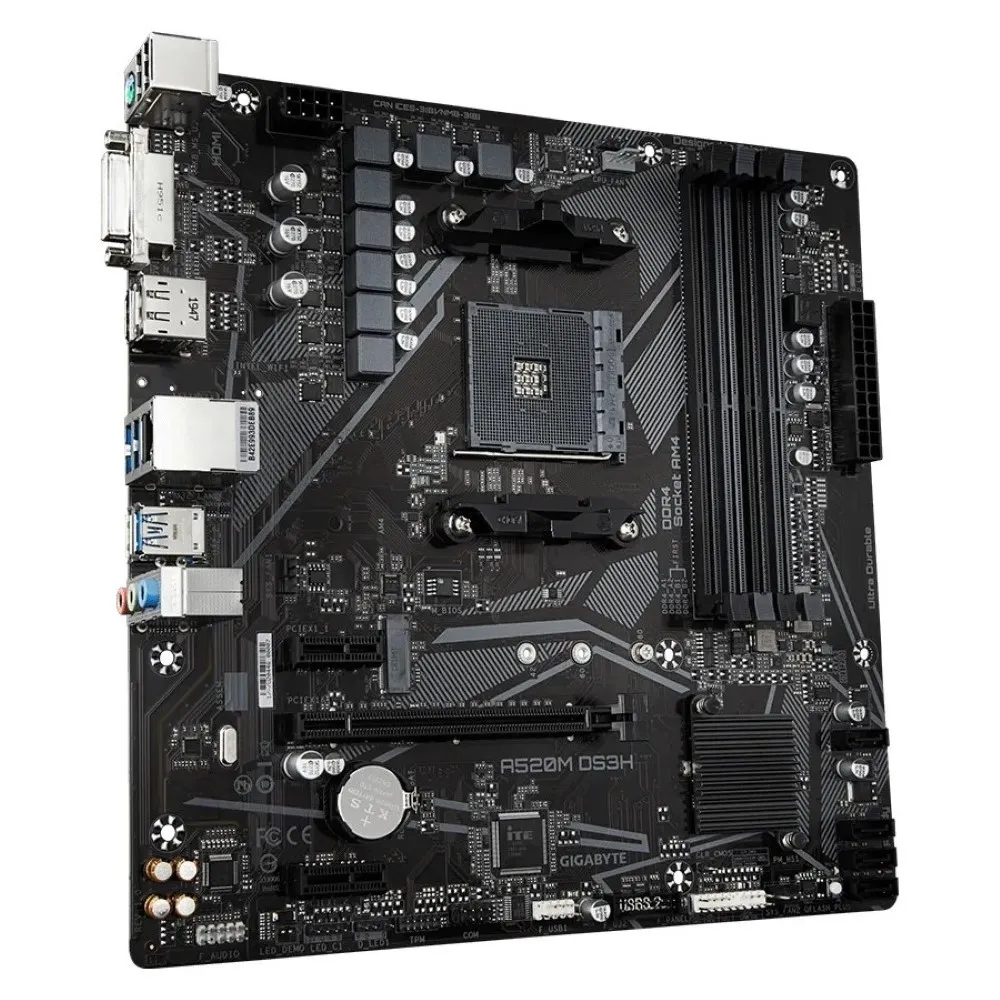

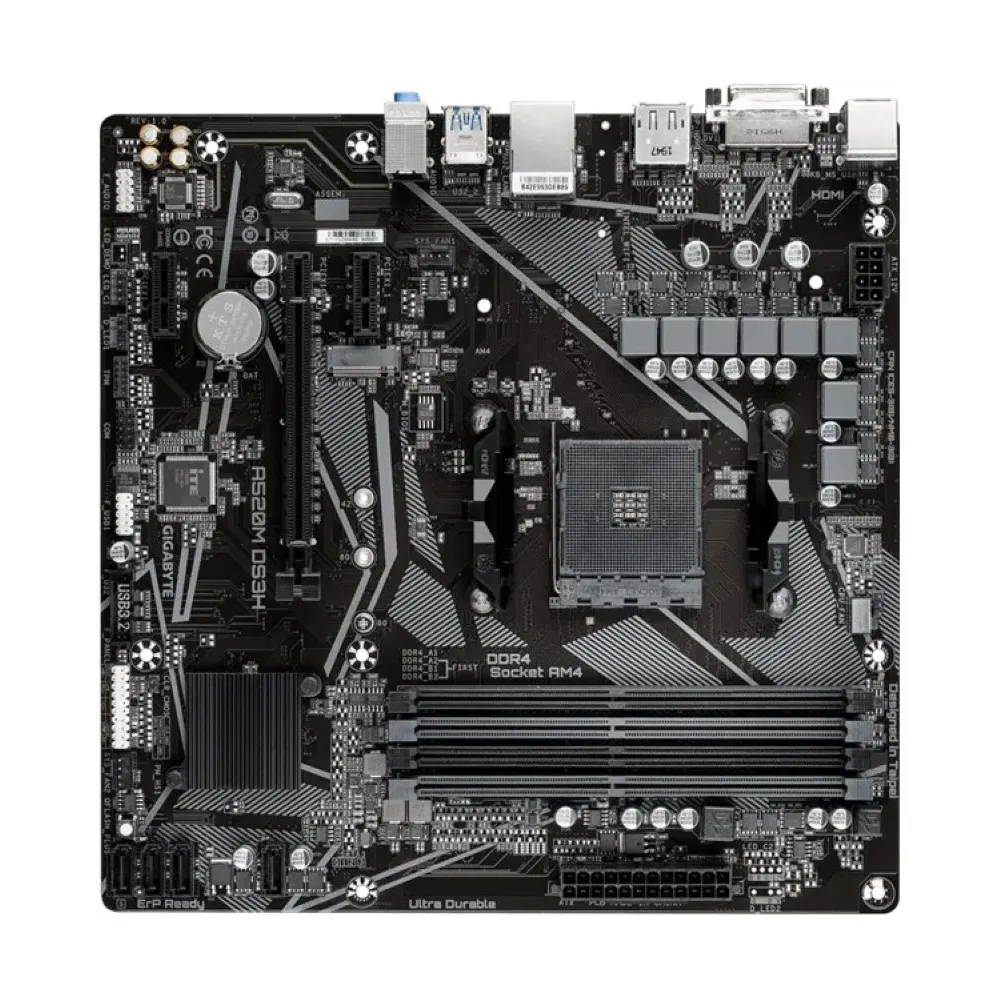

Gigabyte A520M (Black) DS3H AMD AM4 Micro-ATX Motherboard - Price in Pakistan
The Gigabyte A520M DS3H AMD AM4 MicroATX Motherboard is a versatile and reliable motherboard designed for AMD Ryzen-based desktop systems. Built around the AMD A520 chipset and featuring an AM4 CPU socket, it supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000/3000 G-Series processors.
With four DDR4 DIMM slots supporting up to 128GB of system memory, dual-channel memory architecture, and support for high-speed DDR4 memory up to DDR4 4733(O.C.) depending on the processor, the A520M DS3H provides a strong foundation for gaming, productivity, content creation, and everyday computing.
The motherboard features a 5+3 phase Pure Digital VRM solution with low RDS(on) MOSFETs for stable power delivery. Storage options include an M.2 Socket 3 connector with PCIe 3.0 x4/x2 and SATA support along with four SATA 6Gb/s connectors and RAID 0, RAID 1, and RAID 10 support.
For graphics and multi-monitor setups, the motherboard provides HDMI, DisplayPort, and DVI-D outputs, supporting up to three displays simultaneously when paired with a compatible processor featuring integrated graphics. It also includes a PCIe 3.0 x16 slot for a dedicated graphics card and two PCIe 3.0 x1 expansion slots.

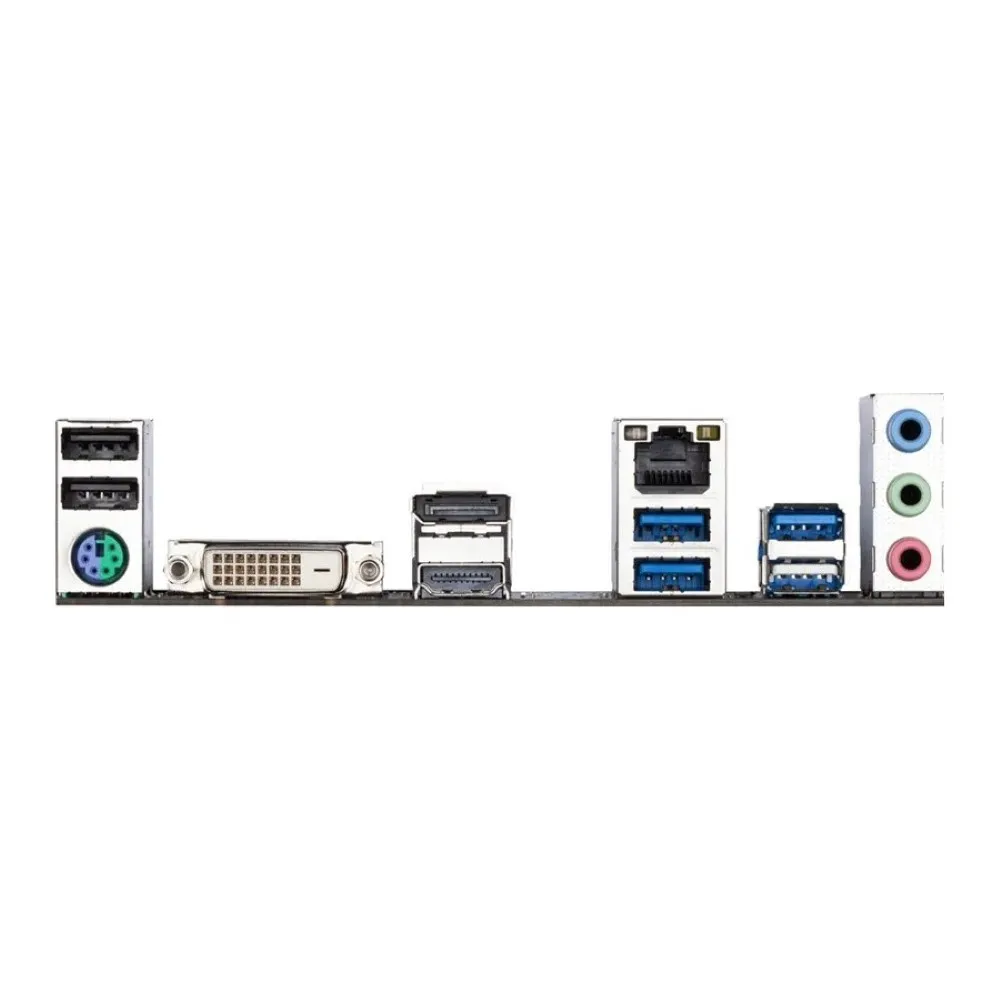

Connectivity includes Realtek GbE LAN, USB 3.2 Gen 1 and USB 2.0/1.1 ports, PS/2 connectivity, and multiple audio connections powered by a Realtek High Definition Audio codec. RGB Fusion 2.0, Smart Fan 5, multiple temperature sensors, hybrid fan headers, and Q-Flash Plus provide additional customization, cooling control, and convenient BIOS updating.
With its compact Micro ATX 24.4 × 24.4 cm form factor, the Gigabyte A520M DS3H is suitable for a wide range of compact and standard PC builds.
Features
AMD AM4 socket motherboard
Supports AMD Ryzen™ 5000 Series processors
Supports Ryzen™ 5000 G-Series processors
Supports Ryzen™ 4000 G-Series processors
Supports Ryzen™ 3000 and Ryzen™ 3000 G-Series processors
AMD A520 chipset
5+3 phase Pure Digital VRM solution
Low RDS(on) MOSFETs for efficient power delivery
4 × DDR4 DIMM slots
Supports up to 128GB system memory
Dual-channel memory architecture
Supports ECC and non-ECC unbuffered DDR4 memory
Supports XMP memory modules
High-speed DDR4 memory support up to DDR4 4733(O.C.) depending on CPU
1 × PCI Express x16 slot with PCIe 3.0 support
2 × PCI Express x1 slots with PCIe 3.0 support
Ultra-fast M.2 connector with PCIe 3.0 x4/x2 and SATA support
4 × SATA 6Gb/s connectors
Supports RAID 0, RAID 1, and RAID 10
HDMI, DisplayPort, and DVI-D video outputs
Supports up to 3 displays simultaneously
Realtek GbE LAN with 1Gbps/100Mbps connectivity
Realtek High Definition Audio
Supports 2/4/5.1/7.1-channel audio
RGB Fusion 2.0 support
Addressable RGB LED and RGB LED strip headers
Smart Fan 5 technology
Multiple temperature sensors
Hybrid fan headers with Fan Stop support
Q-Flash Plus for BIOS updates without CPU, RAM, or graphics card
Q-Flash and @BIOS support
Windows 11 64-bit support
Windows 10 64-bit support
Compact Micro ATX form factor
Specifications
Specification | Details |
|---|---|
Brand | GIGABYTE |
Model | A520M DS3H |
Product Type | AMD AM4 Micro-ATX Motherboard |
CPU Socket | AMD Socket AM4 |
Chipset | AMD A520 |
CPU Support | AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series |
Memory Type | DDR4 |
Memory Slots | 4 × DDR4 DIMM |
Maximum Memory | Up to 128GB |
Memory Architecture | Dual Channel |
ECC Support | ECC Unbuffered DIMM |
Non-ECC Support | Non-ECC Unbuffered DIMM |
XMP Support | Yes |
Maximum Supported Memory Speed | Up to DDR4 4733(O.C.), CPU dependent |
PCIe x16 Slot | 1 × PCI Express x16, PCIe 3.0 |
PCIe x1 Slots | 2 × PCI Express x1, PCIe 3.0 |
M.2 Slot | 1 × M.2 Socket 3, M Key |
M.2 Sizes | 2242 / 2260 / 2280 |
M.2 Interface | SATA / PCIe 3.0 x4/x2 |
SATA Connectors | 4 × SATA 6Gb/s |
RAID Support | RAID 0 / RAID 1 / RAID 10 |
Integrated Graphics | Processor-dependent |
DVI-D | 1 × DVI-D, up to 1920 × 1200 @ 60Hz |
DisplayPort | 1 × DisplayPort 1.4, up to 5120 × 2880 @ 60Hz |
HDMI | 1 × HDMI 2.1, up to 4096 × 2160 @ 60Hz |
Multi-Display | Up to 3 displays simultaneously |
Shared Graphics Memory | Up to 16GB |
Audio Codec | Realtek® Audio CODEC |
Audio | High Definition Audio |
Audio Channels | 2/4/5.1/7.1-channel |
LAN | Realtek® GbE LAN |
LAN Speed | 1Gbps / 100Mbps |
Rear USB 3.2 Gen 1 | 4 ports |
Internal USB 3.2 Gen 1 | 2 ports via header |
Rear USB 2.0/1.1 | 2 ports |
Internal USB 2.0/1.1 | 2 ports via header |
PS/2 | 1 × PS/2 keyboard/mouse port |
Network Port | 1 × RJ-45 |
Audio Jacks | 3 |
RGB Support | RGB Fusion 2.0 |
Addressable RGB | 1 × Addressable LED strip header |
RGB Header | 1 × RGB LED strip header |
CPU Fan Header | 1 |
System Fan Headers | 2 |
Main Power Connector | 1 × 24-pin ATX |
CPU Power Connector | 1 × 8-pin ATX 12V |
TPM Header | 1 × TPM header |
Front Panel Header | 1 |
Front Audio Header | 1 |
Serial Port Header | 1 |
Clear CMOS | 1 × Clear CMOS jumper |
BIOS | 128 Mbit Flash ROM |
BIOS Type | AMI UEFI BIOS |
BIOS Update | Q-Flash / Q-Flash Plus |
Fan Control | Smart Fan 5 |
Fan Monitoring | Voltage / Temperature / Fan Speed Detection |
Operating System | Windows 11 64-bit / Windows 10 64-bit |
Form Factor | Micro ATX |
Dimensions | 24.4 × 24.4 cm |
